- Cadre, fourche

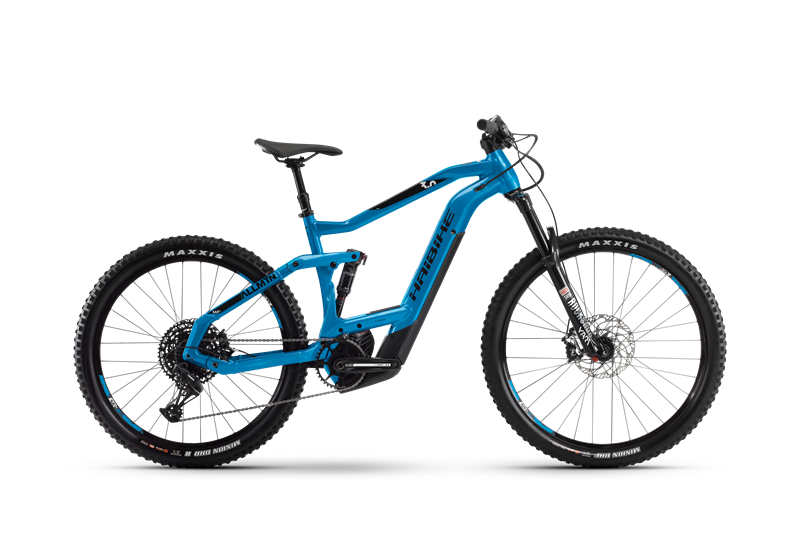

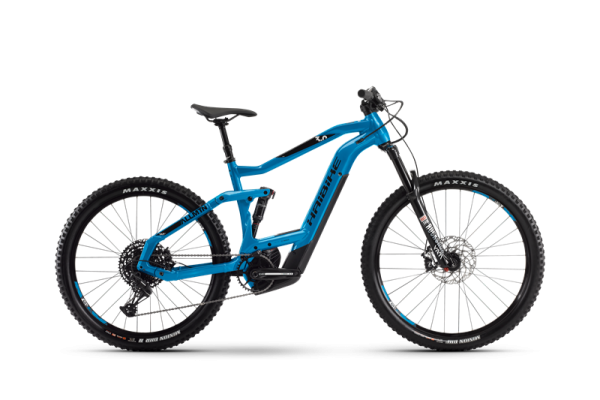

Cadre: Haibike, XDURO AllMtn, Aluminium 6061, Thru-axle M12 (1.75) x 148mm, Disc brake Post Mount, Travel= 160 mm
Fourche: RockShox, Yari RC, Air, Travel= 160 mm, Aluschaft 1 1/8 – 1 1/2”” tapered, 15 x 110mm thru-axle Boost
Amortisseur: RockShox, Deluxe Select Plus, Air, 65.0 mm
- Moteur, batterie
Moteur: Bosch, Performance CX gen4 85 Nm, 250 W, 25 km/h
Batterie: Bosch, PowerTube, 625 Wh
Ecran: Bosch, Purion
- Groupe
Dérailleur arrière: Sram, SX Eagle
Manette: Sram, SX Eagle, Trigger switch, 12 speed
Plateau: Sram, 38 teeth
Freins: Magura, MT5, 203 mm, 4-piston disc brake
- Périphériques
Cintre: Haibike Components, TheBar ++, 780 mm
Potence: Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Tige de selle: Haibike Components, Dropper-Post Remote 31.6, Telescope, Aluminium
Selle: Haibike Components, TheSaddle
- Roues, pneus
Roues: Rodi, Tryp 35, with eyelets, hollow rim, Aluminium, Avant : 29” / Arrière : 27.5″
Pneus: Maxxis, Minion DHR II , 71-584, 27.5″ x 2.80″
Poids: 23.3 kg
