- Cadre, fourche

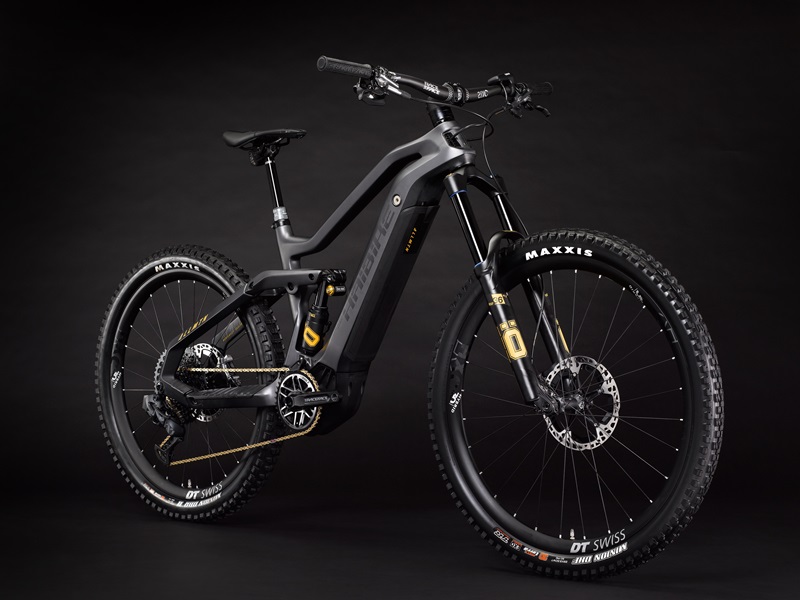

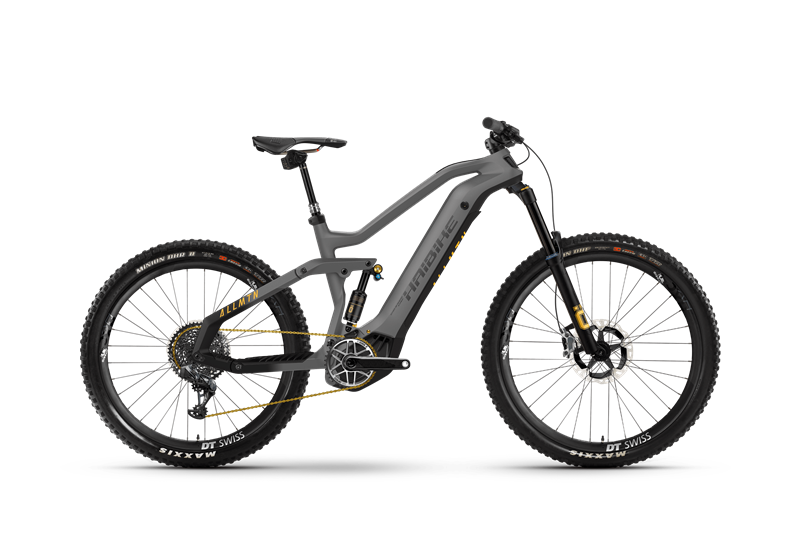

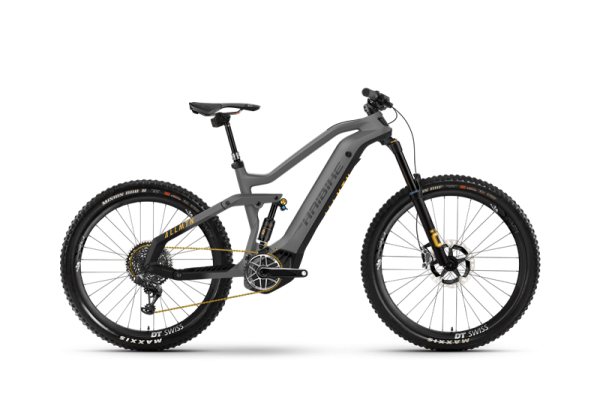

Cadre: Haibike, AllMtn i600, Carbon

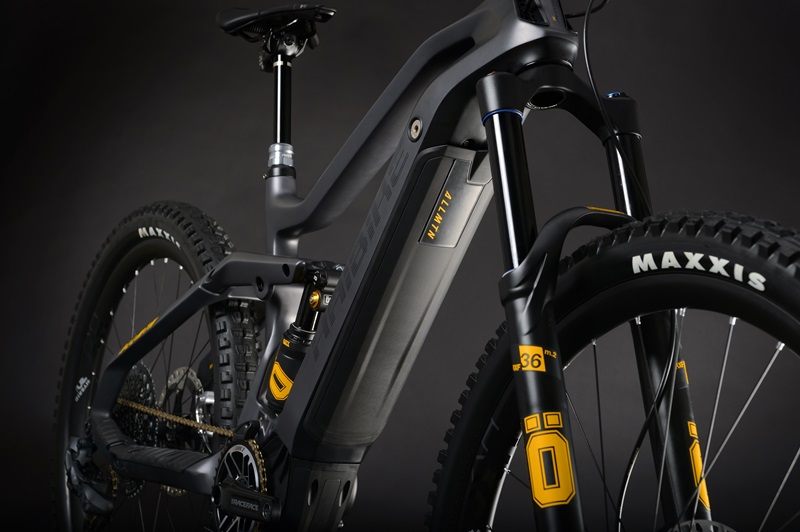

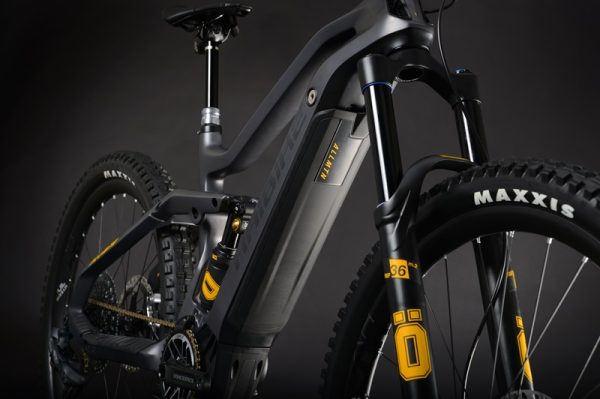

Fourche: Öhlins, RXF36, Air, Travel= 160 mm, Aluschaft 1 1/8 – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

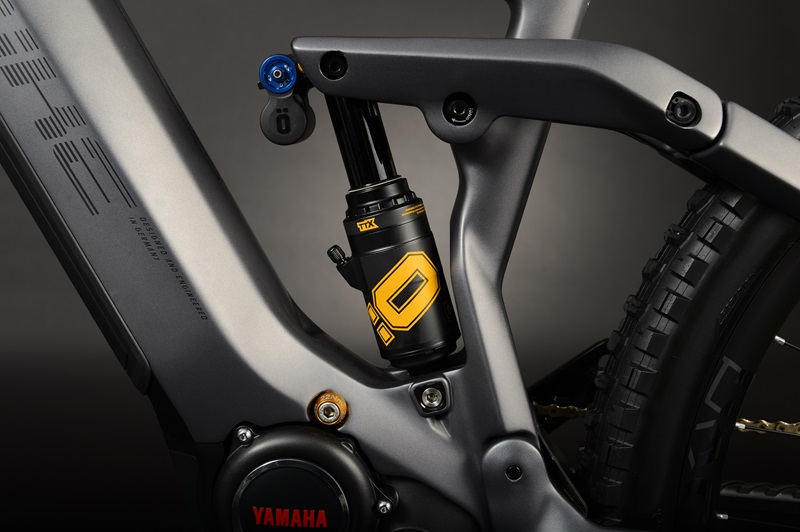

Amortisseur: Öhlins, TTX Air Extended, Air, Trunnion Mount M8x25
- Moteur, batterie

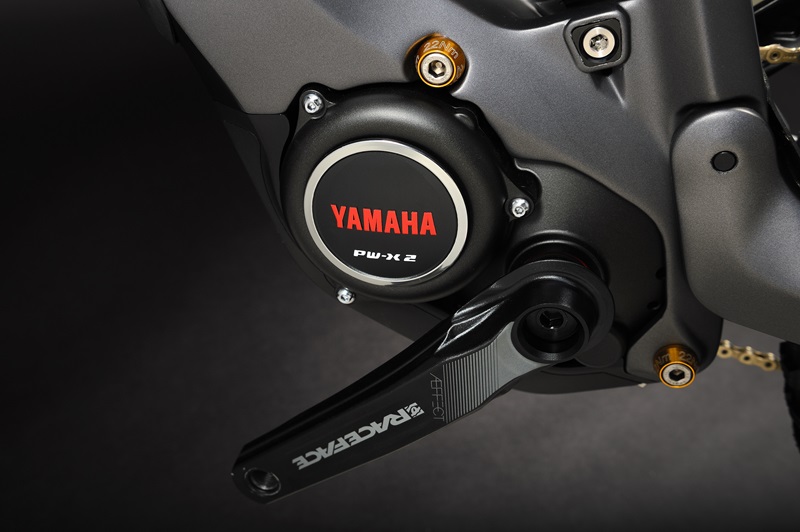

Moteur: Yamaha, PW-X2, 250W, 80 Nm, 25 km/h
Batterie: Yamaha, 600 Wh

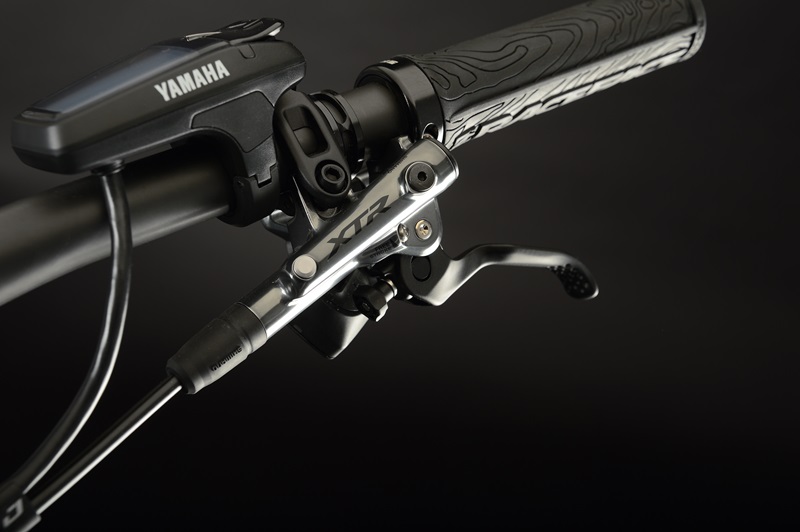

Ecran: Yamaha, Side Switch, 1.7″ LCD, 7 functions
- Groupe

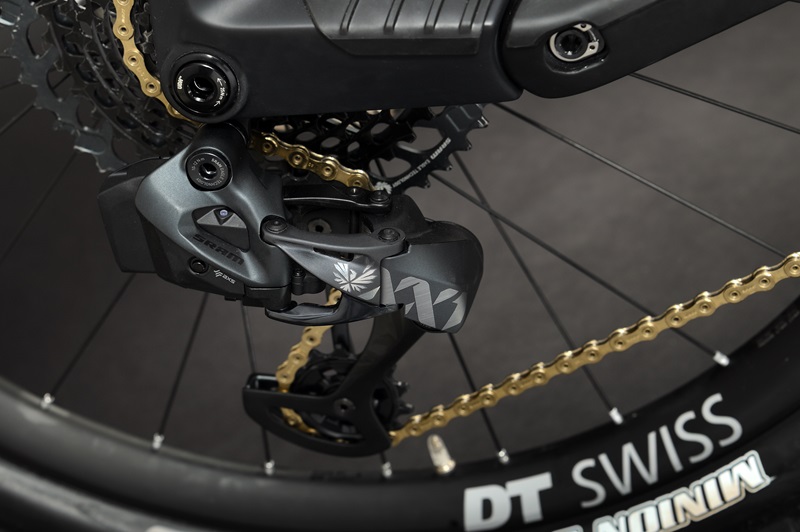

Dérailleur arrière: Sram, XX1 Eagle AXS
Manette: Sram, Eagle XX1 AXS, Trigger switch, 12 Speed
Cassette: Sram, Eagle XG1295, 10 – 52 teeth

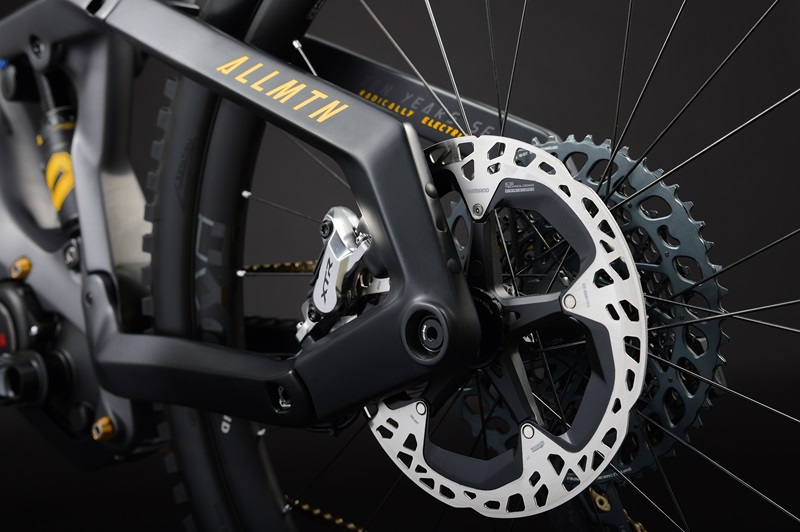

Freins: Shimano, XTR M9120, 203 mm, 4-piston disc brake
Plateau: Haibike Components, Aluminium, 38 teeth
- Périphériques
Cintre: Raceface, Six C Carbon, 785 mm
Potence: Haibike Components, TheStem 2, A-head, Bar bore: 31.8 mm
Tige de selle: Sram, Reverb AXS, Aluminium, Telescope, 31.6 mm
Selle: Prologo, Proxim W450
- Pneus, roues
Pneus arrière: Maxxis, Minion DHR II, 71-584, 27.5″ x 2.8″
Pneus avant: Maxxis, Minion DHF II, 63-622, 29″ x 2.5″
Roues: DT Swiss, HXC1200 Carbon
