- Cadre, fourche

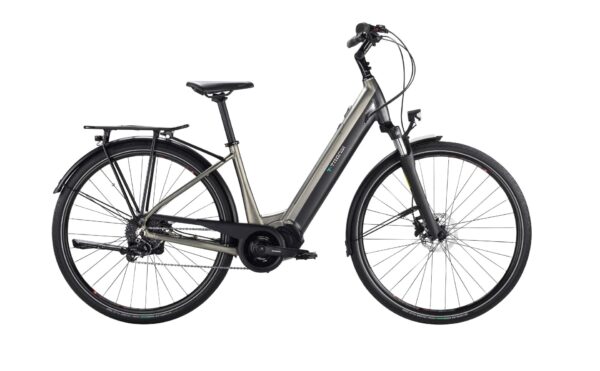

Cadre: T-Tronik C-Type Frame 28″ Urban, Suspended fork geometry, Alu PG 6061 32/37 Max shell, disc brake, O.L.D.135mm, D/T battery
Fourche: Suntour SF15-NEX-E25-DS-700C-63 PostMount disc brake, 1.1/8″”, travel 63mm, compatible with fender, OLD 100mm, Quick relase type
- Moteur, batterie
Moteur: Shimano E6100, torque 60Nm
Batterie: 417Wh Phylion integrated battery
- Groupe
Dérailleur arrière: Sunrace, 9V, max 42T
Plateau: FSA SMN E-Bike Forged Crankset, 170mm CHAINRING, SM-CRE61, 38T, FOR CHAIN LINE 46.5MM
Manettes: Sunrace DLE903N, 9sp, w/ optical gear
Frein: Radius Rotors RT900, 160mm, center lock
- Périphériques
Cintre: Velomann 31.8/680mm, RISE 20MM, SWEEP 15°
Potence: Velomann, 28,6 mm steerer ID Clamp, 31,8 mm barbore
Tige de selle: Velomann, lenght 350mm, diam. 31,6mm, 0mm seatback, Al2014 shaft + alloy head
Selle: Selle Royal, Essenza
- Pneus, roues
Pneus: Chaoyang E-Liner City 700x45C, 60tpi
Roues: Velomann 29″, 23-622, 32 hole black
